Arturia Matrixbrute

Analog Synthesizer

DescriptionImagesSoundsVideoTech specsAlternativeFAQRelated ArticlesComments

Matrixbrute 1Matrixbrute 2Matrixbrute 3
Product Images: click to view fullsize version.

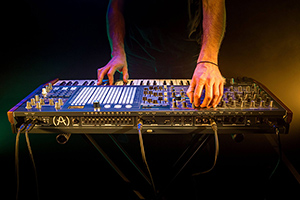

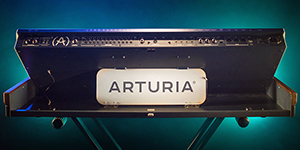

Arturia Matrixbrute
Arturia Matrixbrute
1 900.00 street price

100% analog monophonic synthesizer with unimaginable modulation matrix. 3 classic oscillators taken from the Microbrute/Minibrute family (+ 1 sub), 12dB/24dB filters, three envelope generators, 49 full-size buttons with aftertouch, packed in high-quality housing hinting at Minimoog Voyager XL style.

The modulation matrix concept was about replacing the tangle of patch cords with the controller platform and the touch matrix. MOD mode allows routing of any of the 16 modulation sources to any of the 18 modulation points, letting you monitor what is happening on the display. With the help of the matrix the patterns of the sequencer can be created and it can also be used in the PRESET mode. In addition to such a total control, the synthesizer is distinguished by the number of inputs and outputs that occupied the panel with the same density as knobs and buttons occupied the control panel: 12 CV in/out, audio in, gate in/out, sync in/out, MIDI in/out /Thru, USB in/out, 2 expression pedals + sustain and connectors for stereo outputs.

The synthesizer also includes ladder filter and Steiner-Parker filter, 5 chains of analog effects. As the developers of Matrixbrute admit, the main idea was to combine the flexibility of modular synthesizers with an intuitive interface sticking to the rule "one button per function".

Tags: analog synthesizer

Country of origin / production: France

Favorites   Recommend product to a friend

E-mail*
More info

Usage area
Synthesizer
Usage Design/ Form Factor
With Keys
Archetype
Analogue (A)
Polyphony
Monophonic
Voices1
Tone Generator / Sound Synthesis
Oscillator Type VCO (Voltage Controlled Oscillator)
Oscillators' hard sync
Oscillators per voice2
Sub-Oscillators per voice1
Waveform/ Spectral form (main generator) Sine
Waveform/ Spectral form (main generator) Pulse Width Modulation (PWM)
Waveform/ Spectral form (main generator) Triangle
Waveform/ Spectral form (main generator) Saw
Waveform/ Spectral form (main generator) Super Saw
Waveform/ Spectral form (main generator) White Noise
Waveform/ Spectral form (main generator) Pink Noise
Waveform/ Spectral form (main generator) Violet Noise
Programs/ Voices/ Timbres
Single Voice Preset128
User-defined Single Voice128
Filter
Voltage Controlled Filter (VCF)
High-pass Filter (HPF)
Low-pass Filter (LPF)
Band-pass Filter (BPF)
Band-reject Filter (BRF/ BEF)
Multimode
2-pole
4-pole
Envelope Generator (EG)
Filter: Yes
Amp: Yes
ADSR
Delay+ADSR
Modulation
Source count16
Destination count18
LFO: LFO Count2
Effects
Reverb
Chorus
Flanger
Delay
Sequencer
Step Sequencer
Max Step Count64
Arpegiator/ Portamento
Arpegiator
MIDI
General MIDI (GM)
MIDI in/ out
IN
OUT
THRU
Keys
Type Synth Action
Velocity Sensitivity
Aftertouch
Size4
Number of Keys49
External controllers
Sustain foot pedal
Expression foot pedal
CV in12
Gate in1
CV out12
Gate out1
Audio out
Stereo
Analogue: 1/4" (6.35mm)2
Audio in
Analog 1/4"1
Computer Interfaces
USB USB PC Link
USB MIDI through USB
Power
Power Supply Built-in, internal
Case/ body
Metal&wood
Color
Black
Production start2016
