Korg ARP ODYSSEY

Analog Synthesizer

DescriptionImagesSoundsVideoTech specsCompatibleAlternativeFAQRelated ArticlesManualsComments

ARP ODYSSEY 1ARP ODYSSEY 2ARP ODYSSEY 3ARP ODYSSEY 4ARP ODYSSEY 5ARP ODYSSEY 6
Product Images: click to view fullsize version.
Korg ARP ODYSSEY
Korg ARP ODYSSEY
800.00 street price

The instrument is a successfully modified ARP Odyssey with MIDI in and USB MIDI introduced, separate headphone and balanced XLR outputs added, and a drive option devised for VCA distortion.

The 37-note keyboard reproduces ARP Odysseys original synthesis circuitry offering classic sounds together with new tones. The filter section used to be the main distinction between the three versions of the original instrument and that’s where you benefit from purchasing the KARP – the new Korg’s keyboard provides you with all 3 filter circuits integrated. The new Odyssey also represents both of the portamento behaviors of Rev1 and Rev2/3 which differ when the transpose function is enabled.

The new model represents a reduced housing of the ARP’s body making 86% of it. Patch cables come together with the unit and allows for amusing sonic tricks which might come in handy.

The instrument is duophonic and allows for two different pitches for two pressed notes. Get the control over pitch modulation as well as pulse width modulation, achieve the sharp overtones with oscillator sync, apply white or pink noise, use some metallic sounds delivered by ring modulation.

The famous three types of low-pass filter selectable in a switch feature different characteristics including 12dB punchy one, 24dB for meaty low tones and the type from Rev 3 ensuring amazing stability when the resonance is increased. The high pass filter follows the low pass type. The filter can be modulated by many sources including sample&hold, LFO, two envelopes. Sample&Hold sounds are created owing to the S/H Mixer with the help of the oscillator or noise generator as a source.

Tags: analog synthesizer

Country of origin / production: Japan

Favorites   Recommend product to a friend

E-mail*
More info

Usage area
Synthesizer
Usage Design/ Form Factor
With Keys
Archetype
Analogue (A)
Polyphony
Voices2
Tone Generator / Sound Synthesis
Oscillator Type VCO (Voltage Controlled Oscillator)
Oscillators per voice1
Waveform/ Spectral form (main generator) Sine
Waveform/ Spectral form (main generator) Square
Waveform/ Spectral form (main generator) Saw
Waveform/ Spectral form (main generator) White Noise
Waveform/ Spectral form (main generator) Pink Noise
Filter
Voltage Controlled Filter (VCF)
High-pass Filter (HPF)
Low-pass Filter (LPF)
12dB
24dB
Resonance
Envelope Generator (EG)
Attack
Decay
Sustain
Release
FilterADSR
AmpADSR
ADSR
AR
Modulation
LFO: LFO Count1
Effects
Ring Modulation
MIDI in/ out
IN
Keys
Type Synth Action
Mini Keys
Velocity Sensitivity
Size3
Number of Keys37
Full Octave Range9
External controllers
CV/ Gate IN
CV/ Gate OUT
Audio out
Dedicated output per voice
All voices mixed in one output
Analogue: 1/4" (6.35mm)5
Analogue: 1/4" (6.35mm) headphones preamplified1
Audio in
XLR1
Computer Interfaces
USB USB PC Link
Power
Voltage 9V
Power Supply External
Power consumption6.5 W
Dimensions
Height120 mm
Width502 mm
Depth380 mm
Height4.72 in
Width19.76 in
Depth14.96 in
Weight5 kg
Weight11 lb
Case/ body
Metal&plastic
Color
White
Black
Grey
Production start2015

Please log in using the form below or register to be able to order goods and services.

Username
Password (4 to 16 characters)

ARP Odyssey
5.0/5 1

  Monophonic Analog Synthesizer   2 500.00 U.S.Dollars

After the release of Minimoog it became clear that the synthesizer is not a huge cabinet you should drag to rehearsals but rather a small and elegant device. And ARP (and at that time the synthesizer market was reined over only by Moog and ARP) had to...

Korg ARP ODYSSEY Module
/5 0

  Analog Synthesizer Tabletop Module   600.00 U.S.Dollars

Except a different housing and the missing keyboard, KORG ARP Odyssey desktop module technically copies its keyboard variant which is reproduced as accurate as possible according to the ARP Odyssey original architecture. It is a duophonic analog...

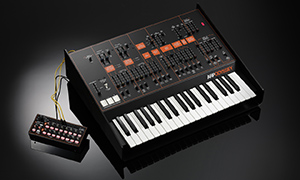

Korg ARP ODYSSEY FS
