Pioneer DJ TORAIZ AS-1

Monophonic Analog Synthesizer

DescriptionImagesVideoTech specsCompatibleAlternativeFAQRelated ArticlesComments

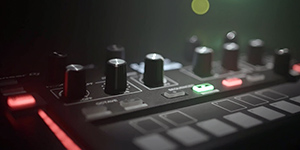

TORAIZ AS-1 1TORAIZ AS-1 2TORAIZ AS-1 3TORAIZ AS-1 4
Product Images: click to view fullsize version.
Pioneer DJ TORAIZ AS-1
Pioneer DJ TORAIZ AS-1
600.00 street price

This mono synthesizer had every chance to become a bestseller. The reason is simple - it is assembled by a well-known Japanese company producing audio-video equipment on the elements of the top synthesizer Dave Smith Instruments Prophet-6. AS-1 became the second in the line of Toraiz along with SP-16 sampler, which was also created in collaboration with the legendary American synth maker (Dave Smith was responsible for the analog filter technology, also taken from Prophet-6).

In fact, AS-1 is an “extracted” from Profit-6 voice enclosed in a compact keyboardless housing. At the same time, the famous low and high pass filters are kept the way they were, there is an envelope processor, a chain of effects and, which is important, a sequencer and an arpeggiator.

Of course, AS-1 is, in some way, a tribute to the fashion of recent years for analog synthesizers and the fight back to competitors - KORG monologue and Novation Bass Station II. On the other hand, AS-1 is an entrance ticket to the world of classical sounds of the famous Prophet at an attractive price. If earlier many of us could only watch the video about Prophet-6 and dream that “the day I will buy it will come”, now this day became 5 times closer – that’s the price difference between Prophet-6 and Pioneer DJ AS-1.

Favorites   Recommend product to a friend

E-mail*
More info

Usage area
Sound Module/ Tone Generator
Usage Design/ Form Factor
Without Keys, Desktop
Archetype
Analogue (A)
Polyphony
Monophonic
Multi Timbral Capacity
Monotimbral
Tone Generator / Sound Synthesis
Synthesis Method Analog Subtractive
Oscillator Type VCO (Voltage Controlled Oscillator)
Oscillators overall2
Oscillators per voice2
Waveform/ Spectral form (main generator) Square
Waveform/ Spectral form (main generator) Triangle
Waveform/ Spectral form (main generator) Saw
Programs/ Voices/ Timbres
Single Voice Preset495
Filter
Voltage Controlled Filter (VCF)
High-pass Filter (HPF)
Low-pass Filter (LPF)
2-pole
4-pole
Resonance
Envelope Generator (EG)
AD
AR
Effects
Chorus
Delay
Phaser
Distortion
Ring Modulation
Modulation
LFO: LFO Count1
Sequencer
Step Sequencer
Max Events Count64
Arpegiator/ Portamento
Arpegiator
Arpegiator Mode Latch
Portamento
MIDI
General MIDI (GM)
MIDI in/ out
IN
OUT
Display
Display type OLED
Built-in controllers
Ribbon Controller1
Audio out
Analogue: 1/4" (6.35mm)2
Analogue: 1/4" (6.35mm) headphones preamplified1
Computer Interfaces
USB USB PC Link
USB MIDI through USB
Power
Power Supply External
Amperage1.5
Dimensions
Height68.6
Width267.4
Depth177.7
Weight1.4 kg
Color
Black
Production start2017
