Elektron Analog Rytm MKII

Analog Drum Machine

DescriptionImagesTech specsCompatibleFAQRelated ArticlesManualsComments

Analog Rytm MKII 1Analog Rytm MKII 2Analog Rytm MKII 3Analog Rytm MKII 4
Product Images: click to view fullsize version.

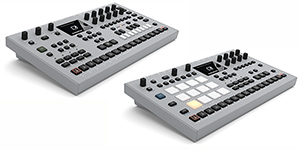

Elektron Analog Rytm MKII
Elektron Analog Rytm MKII
1 550.00 street price

Analog Rytm MKII is a top quality drum machine featuring hybrid architecture of analog and digital components with quick live performance control. The beat makers will be able to sample with Analog Rytm full-function drum device as well.

The MKII version brought some new introductions including sampling capability, OLED display with appropriate visual feedback, solid rugged backlit buttons, high-resolution encoders, responsive live performance controls, large convenient pads, more function buttons, balanced sampling inputs, expression/CV inputs for external parameter control, proprietory overbridge feature with higher bandwidth, high-end aluminium enclosure.

Elektron proprietory Overbridge software allows for comprehensive use of the unit with the computer and comes as a basic or premium option comprising such possibilities as DAW full integration and using Analog Rytm MKII as a sound card.

The instruments offers 8 drum voices with a selectable analog percussion sound generator, sample playback engine, analog multi-mode filter, analog overdrive circuit, filter envelope, amp envelope and assignable LFO per voice. The beat machine incorporates analog distortion and compressor master FX, delay and reverb send FX, 1 GB internal sample memory on +Drive, sequencer suitable for live performances, and is completely compatible with projects and data of the original Analog Rytm version.

The connectivity offers 2 balanced main outputs, 8 balanced mono voice outputs, 2 balanced sampling inputs, one headphone output, 2 external inputs, 2 expression/CV inputs. There are also MIDI in/out/thru ports with DIN SYNC out and a USB port.

Country of origin / production: Sweden

Favorites   Recommend product to a friend

E-mail*
More info

Usage area
Bass Synthesizer
Usage Design/ Form Factor
Without Keys, Desktop
Archetype
Hybrid, Digital+Analog
Tone Generator / Sound Synthesis
Oscillator Type VCO (Voltage Controlled Oscillator)
Technology of Sound Generation PCM
Programs/ Voices/ Timbres
Drum Kits User-defined128
Filter
Voltage Controlled Filter (VCF)
Low-pass Filter (LPF)
2-pole
Modulation
LFO: LFO Count2
Effects
Compressor
Distortion
Sequencer
Pattern Sequencer
Preset patterns64
Preset Songs Templates16
MIDI in/ out
IN
OUT
THRU
Display
Display type OLED
Color resolution Monochrome
Resolution: Horizontal128
Resolution: Vertical64
Pads Matrix
Pads Count12
Velocity
Audio out
Analogue: 1/4" (6.35mm)4
Impedance, line440
Impedance, headphones55 Ω
Computer Interfaces
SSD: SSD size1
Dimensions
Height82 mm
Width385 mm
Depth225 mm
Weight2.500 kg
Color
Grey
Production start2017
