Analogue Solutions Treadstone

Analogue Semimodular Synthesizer

DescriptionImagesVideoTech specsAlternativeFAQRelated ArticlesComments

Treadstone 1Treadstone 2Treadstone 3
Product Images: click to view fullsize version.

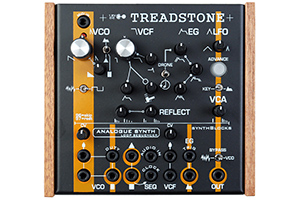

Analogue Solutions Treadstone
Analogue Solutions Treadstone
600.00 street price

No compromise has been made with the construction of Treadstone. Cheaper options in parts have not been used. Full rugged steel/aluminium case with real solid wood – no plastic mouldings, fully sealed against dust. Good quality knobs with spun aluminium caps. True retro analogue voice and modulation circuits used in the synth element to give an authentic retro. The synthesizer is designed, built, tested and assembled in the UK.

Some technical specifications:

  • Stable analogue oscillator
  • Analogue discrete VCO and modulation circuits
  • Analogue SSM style 4-pole (24dB) filter
  • LFO, Noise, Sub Osc, EG (ADSR, Decay&Release share the same control pot), PWM, Lo-Fi digital echo
  • High Quality 16bit DAC for MIDI-CV conversion
  • Stable MIDI to CV converter
  • MIDI loop sequencer

Country of origin / production: United Kingdom

Favorites   Recommend product to a friend

E-mail*
More info

Usage area
Modular System
Sound Module/ Tone Generator
Usage Design/ Form Factor
Without Keys, Desktop
Archetype
Analogue (A)
Polyphony
Monophonic
Tone Generator / Sound Synthesis
Synthesis Method Analog Subtractive
Oscillator Type VCO (Voltage Controlled Oscillator)
Filter
Voltage Controlled Filter (VCF)
Envelope Generator (EG)
ADSR
Modulation
LFO: LFO Count1
LFO Waveforms
Square
Triangle
Effects
Echo
Audio out
Analogue: 1/8" (3.5mm)1
Audio in
Analog 1/8"1
Power
Voltage 12V
Power Supply External
Amperage0.300 A
Dimensions
Height52 mm
Width134 mm
Depth125 mm
Weight0.400 kg
Case/ body
Metal&wood
Color
Black
Production start2018
