AKAI MPC X

Music Production Center

DescriptionImagesVideoTech specsCompatibleFAQRelated ArticlesComments

MPC X 1MPC X 2MPC X 3MPC X 4
Product Images: click to view fullsize version.

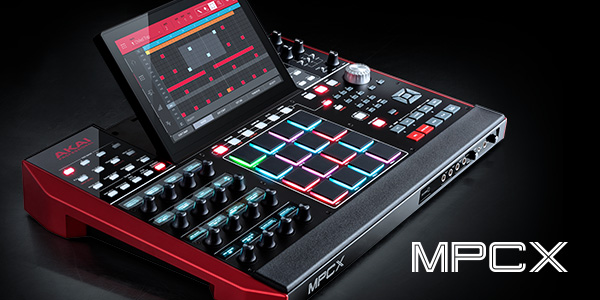

AKAI MPC X
AKAI MPC X
1 200.00 street price

Akai MPC X: Studio Hub That Redefines The Electronic Music Production

The Akai MPC X represents a significant evolution in the MPC product line, expanding on the breakthrough capabilities of the MPC Live. While maintaining the core MPC workflow, this flagship model reimagines the modern studio setup by consolidating numerous peripherals — laptop, DAW, audio interface, mixer, MIDI/CV interfaces, and control surfaces—into a single, purpose-built production hub.

Design and Hardware

The MPC X evolves the classic form factor of previous flagship MPCs, resembling a concept-car version of the MPC Renaissance. With its imposing console-like presence and wrist-rest, it requires more dedicated space than the smaller MPC Live. The unit is substantial in size, with a front panel measuring 505 x 424 mm.

The standout hardware feature is the 10-inch touchscreen with adjustable viewing angle, secured by a metal bracket that keeps it stable during operation. The screen can lie completely flat — ideal for standing operation — and proves remarkably responsive and accurate, even for fine piano-roll editing.

Veterans of previous large-format MPCs will find the control layout familiar, with the right-hand section housing transport controls, keypad, cursors, data wheel, and Main view buttons in familiar positions. The expanded surface area allows for dedicated buttons for nearly all the MPC's modes, providing immediate access without navigating through menu screens.

Connectivity and Expansion

The MPC X significantly expands on the Live's already impressive connectivity:

  • Audio outputs: Eight TRS outputs (compared to six on the Live)
  • Audio inputs: Two XLR/TRS combo mic/line inputs, two TRS line inputs, phono connections for turntables, and two front-panel instrument inputs for direct guitar/bass connection
  • MIDI: Two MIDI inputs and four MIDI outputs
  • CV: Eight CV outputs for modular synth integration
  • Headphones: Both quarter-inch and mini-jack connections on the front panel
  • USB: Two USB-A ports for peripherals (MIDI controllers, keyboards, storage)
  • Storage: 16GB internal SSD system drive, internal bay for SATA drive installation, front-panel SD card slot

The front panel features mixer controls including gain adjustments, phantom power, master level, and a mix control for blending direct input signals with the MPC output.

Like the MPC Live, all connectivity (except Bluetooth) becomes available to your computer when switched to controller mode, effectively turning the MPC X into a USB hub, audio interface, MIDI interface, and CV interface. This allows seamless transition between stand-alone and computer-based operation without reconnecting cables.

Wireless Capabilities

Soon after the product launch, Akai implemented beta Wi-Fi and Bluetooth functionality. Bluetooth can pair with wireless MIDI controllers and QWERTY keyboards, while Wi-Fi enables Ableton Link integration for synchronizing tempo with other compatible devices. A useful addition is a Wi-Fi connection and tempo synchronization with Ableton Live, though some Bluetooth MIDI connections proved challenging.

Controls and Interface

The MPC X features 16 touch-sensitive endless rotary encoders (compared to four on the Live/Touch), each with OLED displays showing current assignment and value. These Q-Link controls operate in five switchable modes:

  1. Screen Control: Dynamic assignments based on the current touchscreen view
  2. Project: Global controls that can include any parameter for live performance
  3. Program: Controls for the current instrument/program
  4. Pad: Focused control of the currently selected pad
  5. DAW: Integration with computer software in controller mode

The pads are probably the best quality among comparable devices, while the Q-Link encoders are perfectly positioned for real-time tweaking.

Software and Workflow

The MPC X runs the same MPC 2.0 (3.0 since 2025) software as the Live, featuring Audio Tracks, Clip Programs, and an improved browser. Akai has implemented several enhancements:

  • Extended warping features to drum programs on a pad-by-pad basis
  • Simplified Program Edit Samples tab with in-line sample editing
  • Detachable mixer window in the software version
  • Event List editing in the touch interface

The modular structure of MPC projects remains distinctive - Programs (Kits, Instruments, etc.) are independent of tracks and can be played by multiple tracks, while each Sequence can have a completely different track structure or represent an entirely different musical idea.

Standout Features

One particularly compelling use case is the MPC X's capability as a sequencing and mixing hub for modular synthesizers. The CV Program type allows assigning CV outputs to notes and gates, effectively creating a MIDI-to-CV converter that can sequence up to four synths simultaneously. CV outputs can also be manually controlled via the Q-Links, with voltage displayed on the OLEDs, and automation can be recorded.

The sampling capabilities remain a core strength, allowing direct capture from various sources, with the enhanced touchscreen and Q-Link controls providing intuitive and precise editing options.

Conclusion

The MPC X is presented as an exceptional piece of equipment that could serve as the centerpiece for a live show, recording setup, or composition studio. While not as portable as the MPC Live and lacking its internal battery, the additional controls and connections provide substantial benefits for studio use and live performance.

The MPC X is ideal for veteran MPC users seeking a true stand-alone experience and for those curious about the MPC workflow who want the most comprehensive implementation. It particularly shines for quick musical sketching, performance sampling, and as a hub for electronic and sampled elements in a live show.

The Akai MPC X represents a significant evolution in electronic music production hardware, expanding on the breakthrough capabilities of the MPC Live with enhanced connectivity and controls. The MPC X combines numerous studio peripherals into a single, purpose-built production hub that can function both as a stand-alone workstation and as a controller for MPC 2.0 software.


Akai MPC X Technical Specifications

Layout&Controls

  • Adjustable 10-inch full-color touchscreen
  • 16 velocity-sensitive RGB pads,
  • 16 Q-Link encoders with OLED displays

Processing

  • Same onboard processing system as MPC Live
  • Stand-alone operation capability
  • Controller mode for MPC 2.0/ 3.0 software/plugin

Audio Connections

  • 8x TRS audio outputs
  • 2x headphone outputs (1/4" and 3.5mm) with dedicated level control
  • 2x XLR/TRS combo mic/line inputs with phantom power
  • 2x TRS line inputs
  • 2x phono inputs with ground post
  • 2x front-panel instrument inputs
  • Front panel mixer section with gain controls and input selection

MIDI&CV&Other Connectivity

  • 2x MIDI inputs
  • 4x MIDI outputs
  • 8x CV outputs (assignable to notes, gates, velocity, or mod wheel)
  • Support for Beat Clock and MTC synchronization
  • 2x USB-A ports for peripherals (MIDI controllers, keyboards, storage)
  • USB-B port for computer connection
  • Wi-Fi with Ableton Link support
  • Bluetooth for wireless MIDI controllers and keyboards

Storage

  • 16GB internal SSD system drive
  • Internal bay for 2.5" SATA drive installation
  • Front-panel SD card slot
  • USB storage device support

Software

  • MPC 2.0 software
  • Stand-alone and controller modes
  • Audio Tracks (limit of 8 in stand-alone mode)
  • Clip Programs with time-stretching
  • Audio warping and pitch-shifting
  • Sample editing and slicing
  • CV programming and automation

Special Features

  • Functions as USB hub, audio interface, MIDI interface, and CV interface in controller mode
  • Seamless project transfer between stand-alone and computer modes
  • Modular synth integration via CV outputs
  • Direct instrument and microphone recording capability

Dimensions

  • 505 x 424 mm (front panel)

This technical specification list captures the impressive array of connections and capabilities that distinguish the MPC X from its smaller sibling. With eight CV outputs, four MIDI outputs, expanded audio I/O including instrument and microphone inputs, and a larger 10-inch touchscreen, the MPC X offers a more comprehensive studio solution. The 16 Q-Link encoders with OLED displays provide intuitive control over various parameters, enhancing both studio workflow and live performance possibilities.

The MPC X maintains the core MPC workflow while integrating modern features like Wi-Fi connectivity with Ableton Link support, extensive storage options including an internal SATA drive bay, and enhanced sample editing capabilities. Particularly notable is its potential as a sequencing and mixing hub for modular synthesizers, with CV outputs that can be manually controlled and automated.

  Recommend product to a friend

E-mail*
More info

Usage area
Sound Module/ Tone Generator
Groovebox/ MPC
Sampler
Usage Design/ Form Factor
Without Keys, Desktop
Archetype
Digital (D)
Polyphony
Voices128
Tone Generator / Sound Synthesis
Synthesis Method Digital Subtractive
MIDI in/ out
IN
OUT
IN count3
OUT count3
Pads Matrix
Pads Count16
Pads Count, vertical4
Pads Count, horizontal4
Multicolor Pads
Velocity
Variable Touch Response
Display
Color resolution 16M colors/ 24bit/ True Color
Resolution: Diagonal10.1
Touch Screen
Built-in controllers
Encoder16
Button63
Jog dial
External controllers
CV/ Gate IN
CV/ Gate OUT
Audio out
Stereo
All voices mixed in one output
Analogue: 1/4" (6.35mm)2
Analogue: 1/4" (6.35mm) headphones preamplified1
Audio in
Analog 1/4"2
RCA2
Computer Interfaces
USB USB PC Link
USB USB Storage
USB MIDI through USB
External drives/ memory cards
SD (SecureDisk)
Power
Power Supply External
Power Supply Internal, Accumulators
Amperage3.42 A
Dimensions
Height69 mm
Width424 mm
Depth224 mm
Weight5.9 lb
Weight2.7 kg
Case/ body
Metal&plastic
Color
Black
Red
Production start2017
Production end2024
Production ended
