Moog Mother 32

Semi-modular Eurorack/ Tabletop Synthesizer

DescriptionImagesVideoTech specsCompatibleAlternativeFAQRelated ArticlesComments

Mother 32 1Mother 32 2Mother 32 3Mother 32 4
Product Images: click to view fullsize version.
Moog Mother 32
Moog Mother 32
550.00 street price

Mother 32 is designed to operate as a module system central unit or as a standalone desktop synth. It offers all the needed functions for a diverse sonic palette.

Its VCO generates saw and square waveforms. In a square mode “pulse width” knob generates waveforms from pulse to square one. LFO, envelope generator or external device signal (using VCO MOD In) can serve as modulation sources. VCO MOD DEST switcher helps to choose between PW and FM.

VCO signal can be blended with the white noise source or external signal in the mixer section.

VCF is available as a low-pass and a high-pass filter, cut-off frequency and resonance are adjustable as well as depth and polarity. Envelope generator or LFO can serve as a modulation source.

LFO offers 0.1 to 350 Hz frequency range.

Envelope generator section allows to adjust the attack and decay time and deactivate sustain.

VCA has a control source switcher: “EG” position makes envelope generator a control source, “ON” makes VCA always fully “open”. VOLUME knob regulates signal output level.

The module possesses a built-in multifunctional keyboard with 13 velocity unsensitive keys. The transposing is available within 8 octaves.

Country of origin / production: USA

Favorites   Recommend product to a friend

E-mail*
More info

Usage area
Modular System
Sound Module/ Tone Generator
Usage Design/ Form Factor
Modular
Modular Format Eurorack
Archetype
Analogue (A)
Polyphony
Monophonic
Tone Generator / Sound Synthesis
Oscillator Type VCO (Voltage Controlled Oscillator)
Waveform/ Spectral form (main generator) Pulse Width Modulation (PWM)
Waveform/ Spectral form (main generator) Saw
Filter
Voltage Controlled Filter (VCF)
High-pass Filter (HPF)
Low-pass Filter (LPF)
4-pole
Envelope Generator (EG)
Attack
Decay
Sustain
Sequencer
Step Sequencer
Max Step Count64
Arpegiator/ Portamento
Portamento
MIDI
General MIDI (GM)
MIDI in/ out
IN
Keys
Size1
Number of Keys13
Audio out
Mono
Analogue: 1/4" (6.35mm)1
Analogue: 1/4" (6.35mm) headphones preamplified1
Audio in
Analog 1/8"1
Power
Voltage 12V
Power Supply External
Dimensions
Height10.7
Width32.4
Depth13.3
Width (Eurorack)60
Weight1.58 kg
Case/ body
Metal&wood
Color
Black
Production start2015

Please log in using the form below or register to be able to order goods and services.

Username
Password (4 to 16 characters)

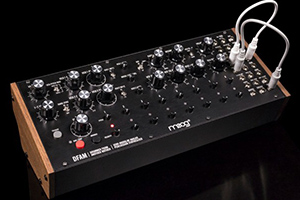

Moog DFAM (Drummer For Another Mother)
